Fertilizer Mixing & Granulation Equipment

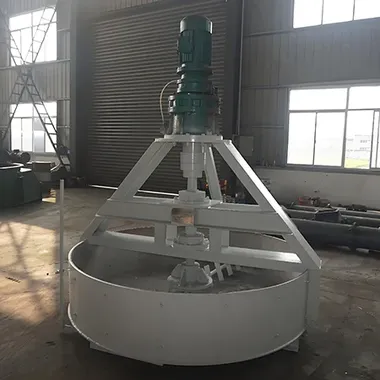

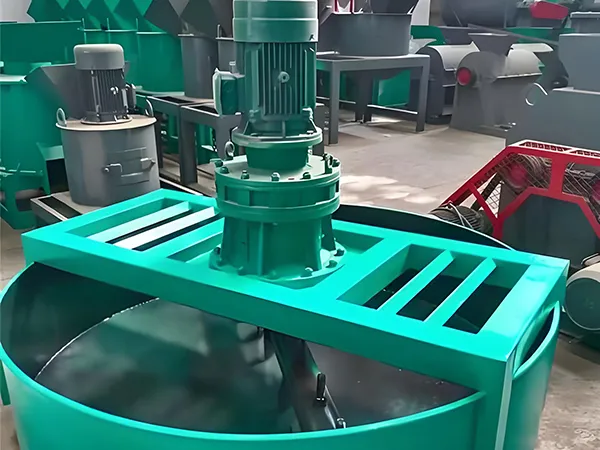

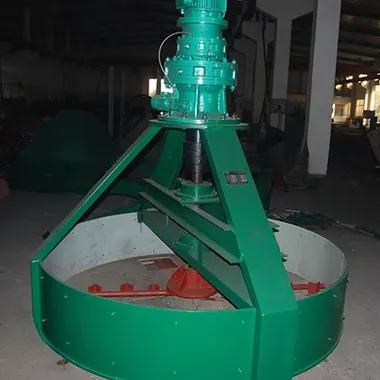

Vertical Pan Mixer

A vertical pan mixer is designed for the efficient mixing of powdered or granular materials, typically used during the raw material batching phase.

Vertical Pan Mixer
Vertical Pan Mixer Vertical Pan Mixer Vertical Pan Mixer
  • Small footprint

    The compact size of the equipment requires minimal floor space, making it an ideal choice for factory expansions or retrofits.

  • Low energy consumption

    It uses less power compared to horizontal mixers.

  • Easy maintenance

    Its simple, low-profile design is easy to clean and maintain, helping to minimize downtime.

Request a Quote
Applications
  • Compound fertilizer production: The vertical pan mixer is essential for uniformly blending raw materials like nitrogen, phosphorus, and potassium, which lays the foundation for high-quality compound fertilizer.
  • Food industry: It's used to mix various ingredients, ensuring consistent product quality.
  • Building materials: The mixer efficiently blends materials like cement and sand to produce stable building materials.
Specifications
Model LJ1600 LJ1800 LJ2000 LJ2200 LJ2500 LJ2800 LJ3000 LJ3200
Pan Diameter (m) Ø1.6 Ø1.8 Ø2.0 Ø2.2 Ø2.5 Ø2.8 Ø3.0 Ø3.2
Pan Height (mm) 500 550 600
Input Size (mm) ≤50 (non-sticky)
Rotation Speed (r/min) 16 15 13 11
Production Capacity (t/h) 5-8 8-10 10-12 12-15 15-18 18-20 20-22 22-25
Power (kW) 7.5 7.5 11 11 15 18.5 22 22

The shell is made from Q235 steel, with an internal PVC liner.

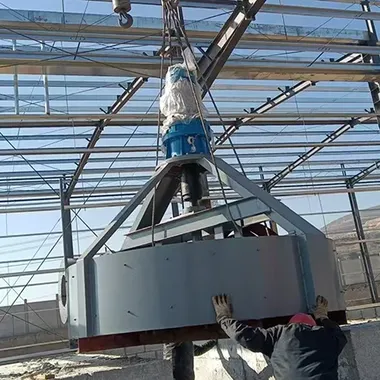

On-Site Cases
On-Site Cases
Jiangxi Kaimenzi Agricultural Chemical Co., Ltd., a 100,000-ton compound fertilizer production line uses our LJ2000 vertical pan mixer.
On-Site Cases
Anhui Ningguo Siert Group’s 200,000-ton compound fertilizer production line uses our LJ3000 vertical pan mixer.
On-Site Cases
Hubei Yangfeng Group’s 100,000-ton compound fertilizer production line uses our LJ2000 vertical pan mixer.
Turnkey Fertilizer plant
Fertilizer Production Line

The various raw materials of fertilizers go through the entire process of feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.
