Fertilizer Crushing Equipment

Fertilizer Crushing Equipment

Size reduction for fertilizers

At PEME, we understand that effective raw material preparation is the foundation of a high-quality fertilizer production line. We offer a comprehensive range of crushing equipment designed to handle diverse raw materials – whether they're lumpy, granular, or powdered – and meet specific pre-processing requirements. Our solutions are adaptable for various applications beyond fertilizer, including coal processing, serving a wide array of industrial needs. Our fertilizer crushing machine types include chain mills, cage mills, hammer mills, and more. With over 10 years of manufacturing and processing experience, we excel in fertilizer equipment from small to large scale, all while maintaining rigorous product quality control.

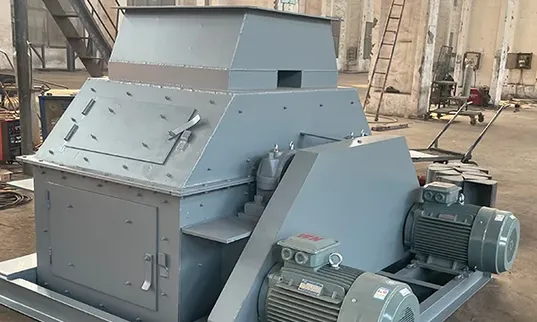

Chain Mill Crusher
Chain Mill Crusher

Chain mill crusher stands out for its unique chain design, offering superior anti-adhesion capabilities when processing high-moisture materials. This design effectively prevents clumping and blockages during the crushing process, making it particularly well-suited for fertilizers. With core components limited to a rotor, chains, and liner plates, and no complex gears or transmission systems, its assembly, disassembly, and daily maintenance are exceptionally convenient.

Learn More

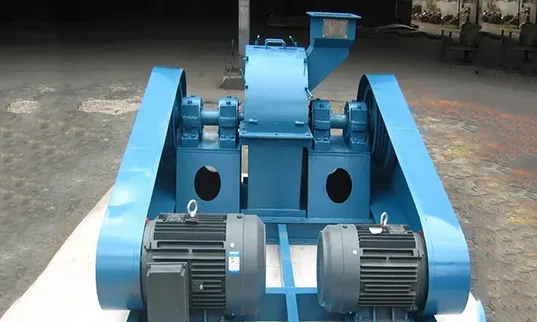

Cage Mill Crusher
Cage Mill Crusher

Cage mill crusher works by using multiple layers of concentric steel cages or crushing rings. As materials enter the crushing machine, they are repeatedly impacted and pulverized by friction between the high-speed rotating cages. This design is highly effective for materials of medium to low hardness.

Learn More

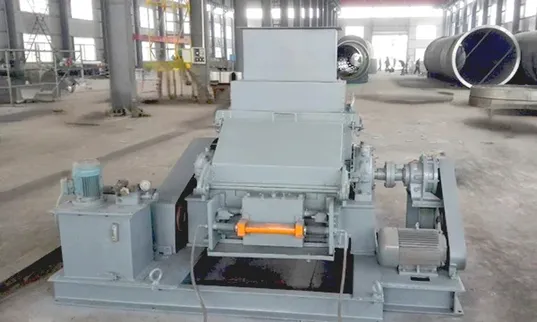

Hammer Mill Crusher
Hammer Mill Crusher

A hammer mill crusher consists of a rotor, hammers, liner plates, and a screen plate. Materials are crushed by the high-speed impact of the hammers and the rebound from the liner plates. The final output size is controlled by the screen plate at the bottom.

Learn More

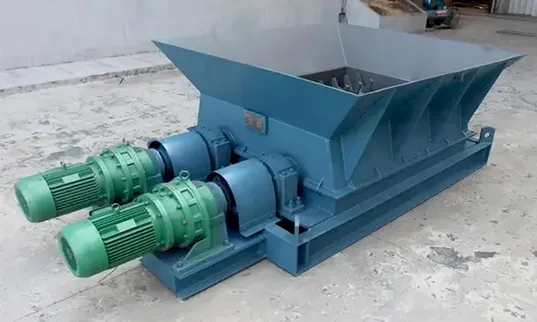

Lump Breaker
Lump Breaker

Lump breaker is engineered to handle the toughest size-reduction challenges. It uses high-pressure impact, squeezing, and shearing forces to break down large materials into smaller particles, making them easier to process or transport. Built with high-wear alloy components and a heavy-duty welded frame, it features hydraulic overload protection for superior impact resistance and anti-deformation.

Learn More

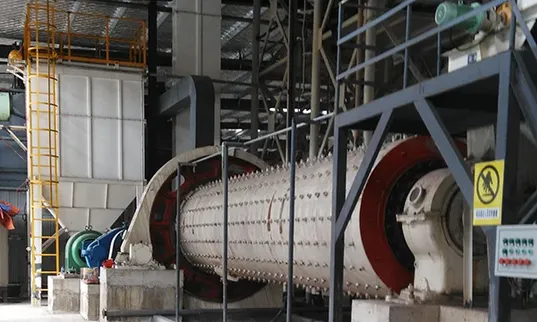

Ball Mill
Ball Mill

A ball mill uses the rotation of a cylindrical drum filled with grinding media, like steel or ceramic balls, to crush materials into a fine powder through a combination of impact and friction. It can be used for either dry or wet grinding and is capable of processing a wide range of materials, including metal ore, coal, and ceramic raw materials.

Learn More
Request a Quote

Send us a message and a PEME representative will be in touch within 1-2 business days.

Contact Us
pacemakerjs@Outlook.com rogerjsrat@126.com
Request a Quote
Turnkey Fertilizer plant
Fertilizer Production Line

Fertilizer production line is a complete system that turns various raw materials into finished fertilizer. The process typically includes feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.

Learn More

We highly recommend our chain mill crusher. Its chain design provides superior anti-adhesion capabilities for high-moisture materials, preventing clumping and blockages during the crushing process, making it ideal for fertilizers. Its core components are simple – a rotor, chains, and liner plates – with no complex gears or transmission systems, ensuring extremely convenient assembly, disassembly, and daily maintenance, leading to minimal downtime and low operational costs.

The cage mill crusher is an excellent choice for crushing limestone. It features multiple layers of concentrically arranged steel cage bars. Material is repeatedly impacted and crushed through friction as it moves between these high-speed rotating bars. This makes it ideal for medium to low-hardness, brittle materials, producing a uniform particle size with minimal over-grinding.

Our lump breaker is perfectly suited for this. It features high wear-resistant alloy components and a heavy-duty welded frame, paired with hydraulic overload protection for superior impact resistance and anti-deformation. Its vibration-damping design reduces loss from vibration, ensuring stability and long life even in harsh working conditions. This crushing machine is highly tolerant of incoming material, capable of directly handling large blocks of 1-1.5 meters without pre-crushing, meeting the demands of large-scale production.
