Bulk Blending (BB) Fertilizer Production Line

Bulk Blending Fertilizer Production Line (BB Fertilizer)
Request a Quote
Bulk Blending (BB) Fertilizer Production Line

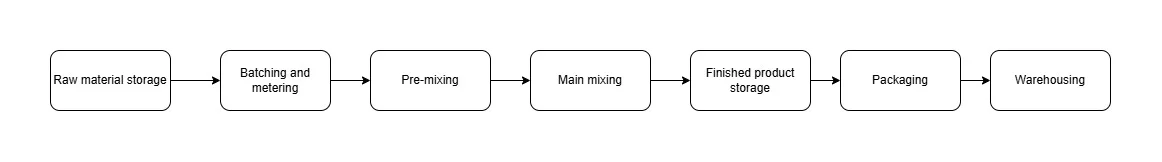

Process Flow
Process Flow
Main Components of Fertilizer Plant
How to Achieve Automated Batching
  • Precise formula control: An operator inputs the target NPK ratios (e.g., 20:10:15). The system then uses high-precision electronic scales to automatically weigh and batch the various raw materials.
  • Core equipment parameters: The system uses static weighing instruments and imported sensors, ensuring a batching error of ≤0.1%. The batch hopper scale has a packaging range of 0-1000kg, suitable for both powdered and granular fertilizers.
Important Considerations for the Mixing Process
  • Choosing a mixer: A horizontal double-shaft mixer is recommended. It uses tumbling and convection to ensure uniform material distribution.
  • Process control: The mixing time is typically 5-15 minutes. The mixing speed is adjustable to prevent material segregation, and the mixing uniformity coefficient of variation is kept at ≤5% (according to internal corporate standards).
Selecting and Recycling Screening Equipment
  • Screening equipment: A vibrating or trommel screen is used to grade the product, removing any clumps, foreign materials, and oversized granules.
  • Waste recycling: Off-spec granules are sent to a crusher and then returned to the mixing process. The screen mesh must be designed to match the target particle size, typically 3-4mm.
Features
  • Formula flexibility: The system supports quick adjustments to NPK ratios, allowing for adaptation to different soil and crop requirements.
  • Cost-effective investment: Equipment investment is lower than a compound fertilizer line. It also requires less land and has a shorter construction period.
  • Stable quality: The physical blending process preserves the nutrient characteristics of the raw materials, ensuring long-lasting fertilizer efficacy.
  • Easy operation: A fully automatic control system reduces the need for manual labor and shortens training periods.
Photo Gallery
Bulk Blending (BB) Fertilizer Production Line
Bulk Blending (BB) Fertilizer Production Line
Bulk Blending (BB) Fertilizer Production Line
Bulk Blending (BB) Fertilizer Production Line
Bulk Blending (BB) Fertilizer Production Line
Other Fertilizer Manufacturing Line

This production line is the best choice when you need high production capacity but do not need a granulation process.

A BB fertilizer production line has a small footprint and can be flexibly laid out. It also requires far fewer pieces of equipment compared to a compound fertilizer line, resulting in lower energy consumption and a smaller operating staff (3 people per shift). This makes it ideal for small manufacturers with lower capacity needs.
