Fertilizer Drying, Cooling & Coating Equipment
-

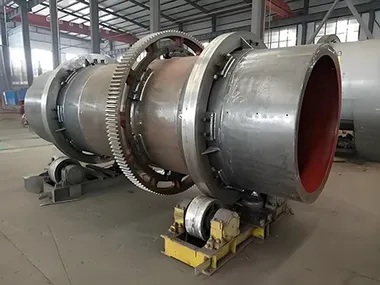

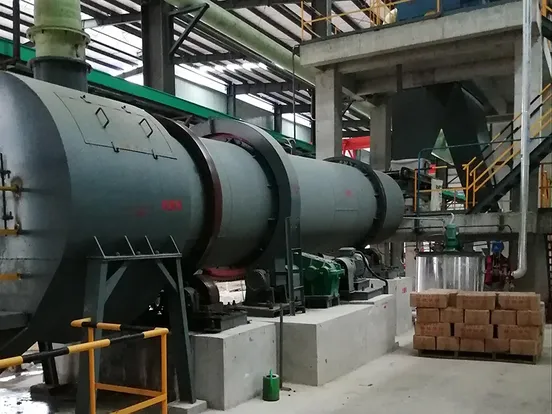

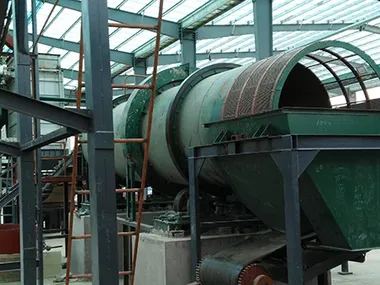

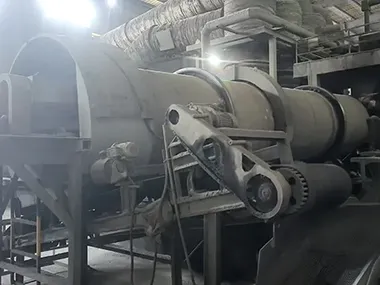

Rotary coating drum is used to apply a protective film to the surface of fertilizer granules. It can be used as a standalone machine or integrated into an existing production line. Our equipment uses either a powder or a liquid coating to form a protective layer, which effectively prevents compound fertilizer from caking and extends its storage life. The main machine can be lined with either a polypropylene or acid-resistant stainless steel plate.
| Drum Size (m) | Ø1.2×4 | Ø1.4×6 | Ø1.6×6 | Ø1.8×7 | Ø2.0×8 | Ø2.2×10 | ||||
| Installation Inclination (°) | 2.5 | |||||||||
| Anti-Caking Agent | Oil or powder (depending on actual process needs) | |||||||||
| Production Capacity (t/h) | 5-8 | 8-10 | 10-15 | 15-20 | 20-25 | 25-30 | ||||
| Power (kW) | 7.5 | 11 | 15 | 18.5 | 22 | 30 | ||||
The drum is made of Q235 steel with an internal PVC or rubber liner. The spray nozzle is made of stainless steel.
The rotary drum coater is composed of a main drum, a screw conveyor, a mixing tank, and an oil pump.
Precise control
PLC/DCS controls regulate the drum's rotation speed, the flow rate of the coating liquid, and the feed/discharge speed, ensuring consistent output quality.
Our experts are on hand to help you with any questions you may have about fertilizer equipment.

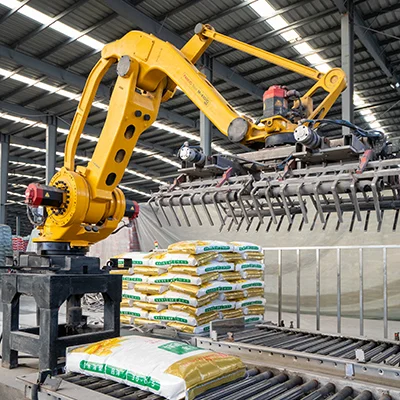

The various raw materials of fertilizers go through the entire process of feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.
Coating is primarily used to apply an anti-caking agent, which prevents sticking and moisture absorption. It can also add color and extend the product's storage life.
They can be either a powder or an oil-based liquid.
Use our rotary coating drum. It consists of a drum, screw conveyor, mixing tank, and oil pump. Our fertilizer granule coating equipment uses powder or liquid coating technology to apply a protective layer. This effectively prevents compound fertilizer from caking and extends its storage life.
