Dust Collection & Control Equipment for
Fertilizer Plant
Fertilizer Plant
-

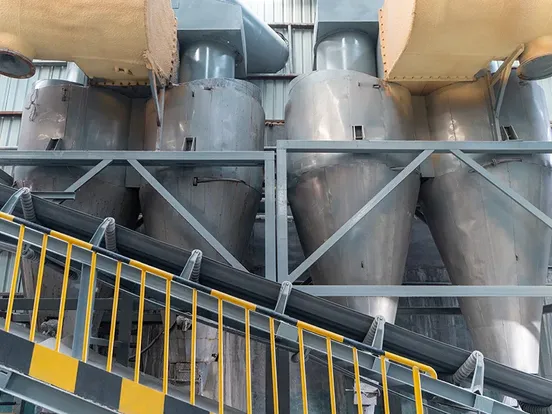

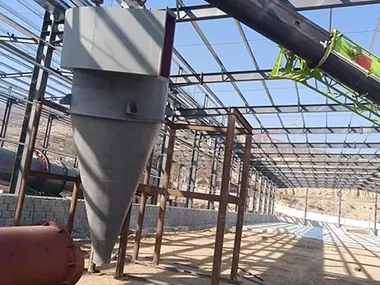

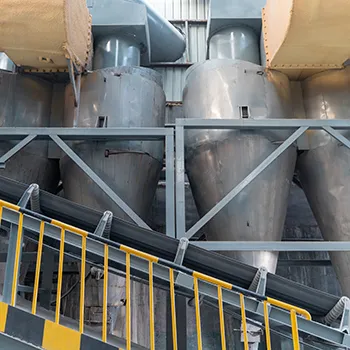

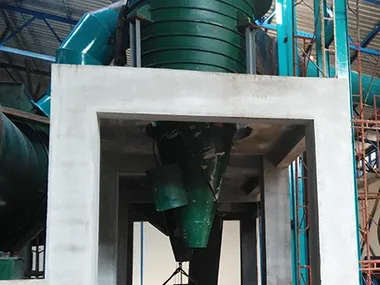

A cyclone separator is specifically designed for the purification of industrial gases containing dust. In the fertilizer industry, it efficiently separates dust particles (such as cement powder, mineral dust, or metal fumes) from exhaust gas. It is particularly effective for the preliminary purification of high-temperature (up to 400℃), high-humidity, or corrosive gases, helping to reduce dust emissions and protect both the environment and workplace safety.
It uses centrifugal force to separate dust, with a particularly high capture efficiency for larger particles ( > 5 microns), meeting the primary purification needs of most industrial settings.
Can handle complex conditions like metallurgical furnace gas and mining dust.
Separated dust can be recycled, which helps to reduce resource waste.
| Model | | | | | | | | | |
| Handling Air Volume (m³/h) | 3000-5000 | 5000-8000 | 9000-12000 | 13000-15000 | 15000-20000 | 20000-26000 | 28000-32000 | 32000-38000 | 38000-46000 |
| Inlet Dust Concentration (g/Nm³) | ≤1000 | ||||||||
| Dust Removal Rate (%) | 80-95 | 70-95 | |||||||
| Flow Resistance (Pa) | 1000-1200 | 800-1200 | |||||||
| Height (m) | 2-3.2 | 2.5-4 | 3-4.8 | 3.5-5.6 | 4-6.4 | 4.5-7.2 | 5-8 | 5.5-8.8 | 6-9.6 |
The standard shell material is Q235 steel, and it can also be customized to 304 stainless steel.
Dust collection is typically managed by a rubber discharge valve or a counterweight discharge valve.
Our experts are on hand to help you with any questions you may have about fertilizer equipment.
The various raw materials of fertilizers go through the entire process of feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.

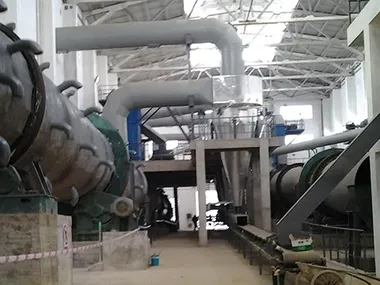

We recommend our cyclone separator. This equipment is designed for the preliminary purification of industrial gases containing dust. It's particularly effective for high-temperature, high-humidity, or corrosive gases, helping to reduce dust emissions and protect the environment and production safety.
Our baghouse dust collector is perfect for purifying particulate matter and dust-laden exhaust gases generated in fertilizer workshops. It's especially suited for controlling emissions of hot, high-concentration, corrosive, or sticky dust. This ensures compliance with emission standards and improves the production environment. Its automated cleaning and intelligent monitoring systems also ensure a long lifespan for the filter bags.

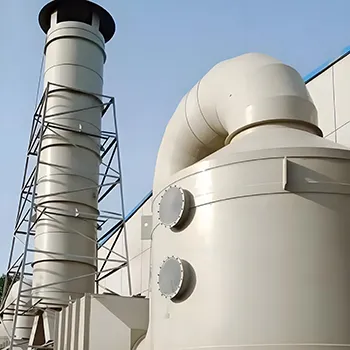

Our tail gas wet scrubber is ideal for post-collection waste gas treatment. Through water washing, physical adsorption, and chemical neutralization, it simultaneously removes acidic and alkaline gases, particulate matter, and some organic pollutants. This significantly improves air quality and helps you meet environmental emission standards.
