Dust Collection & Control Equipment for
Fertilizer Plant
Fertilizer Plant
-

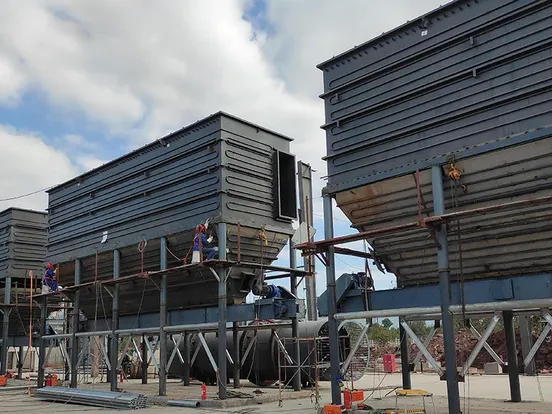

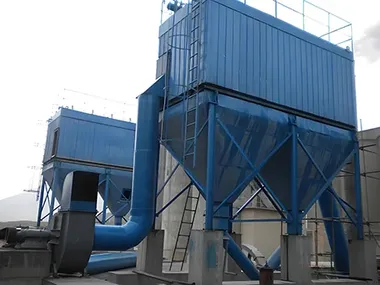

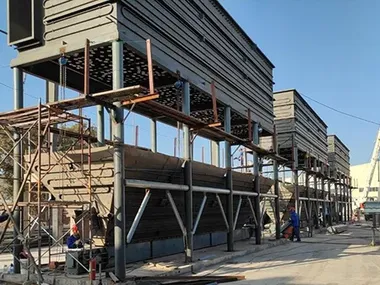

Baghouse dust collector is used in fertilizer industry to purify particulate matter and dust-containing exhaust gases generated during workshop production. It is especially suitable for controlling emissions of high-temperature, high-concentration, corrosive, or sticky dust, ensuring emission standards compliance and improving the production environment.
A variety of filter media (polyester, polypropylene, fiberglass, etc.) and cleaning methods (pulse-jet, reverse-air, shaking) are available to handle various conditions, including high-temperature, high-humidity, corrosive, or sticky dust.
It features automated cleaning and smart monitoring, which extends the lifespan of the filter bags. The modular design allows for quick filter bag replacement and dust bin cleaning without needing to shut down the entire machine.
| Model | DMC-40 | DMC-60 | DMC-100 | DMC-150 | DMC-200 | DMC-300 | DMC-500 | DMC-800 | DMC-1200 | ||||||
| Filtration Surface Area (m²) | 40 | 60 | 100 | 150 | 200 | 300 | 500 | 800 | 1200 | ||||||
| Handling Air Volume (m³/h) | 3000 | 5000 | 8000 | 11000 | 15000 | 20000 | 35000 | 55000 | 80000 | ||||||
| Inlet Dust Concentration (g/Nm³) | ≤50 | ≤80 | ≤100 | ||||||||||||
| Outlet Dust Concentration (g/Nm³) | ≤15 | ||||||||||||||
| Compressed Air Pressure (MPa) | 0.3-0.5 | 0.4-0.6 | |||||||||||||
| Compressed Air Consumption (m³/min) | 0.25 | 0.3 | 0.5 | 0.8 | 1.0 | 1.5 | 2.0 | 3.0 | 4.0 | ||||||
| Flow Resistance (Pa) | 1500-1750 | 1200-1500 | 1000-1200 | ||||||||||||
| Negative Pressure (Pa) | 7000 | ||||||||||||||
| Air Leakage Rate (%) | ≤1.0 | ||||||||||||||
| Material of Filter Bag & Cage | Depending on the characteristics of dust-containing gas (such as acidity, alkalinity, temperature) | ||||||||||||||
| Insulation Area (m²) | 20 | 25 | 32 | 38 | 50 | 70 | 130 | 180 | 300 | ||||||
The shell is made of Q235 steel or 304 stainless steel.
Our experts are on hand to help you with any questions you may have about fertilizer equipment.
The various raw materials of fertilizers go through the entire process of feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.
We recommend our cyclone separator. This equipment is designed for the preliminary purification of industrial gases containing dust. It's particularly effective for high-temperature, high-humidity, or corrosive gases, helping to reduce dust emissions and protect the environment and production safety.
Our baghouse dust collector is perfect for purifying particulate matter and dust-laden exhaust gases generated in fertilizer workshops. It's especially suited for controlling emissions of hot, high-concentration, corrosive, or sticky dust. This ensures compliance with emission standards and improves the production environment. Its automated cleaning and intelligent monitoring systems also ensure a long lifespan for the filter bags.
Our tail gas wet scrubber is ideal for post-collection waste gas treatment. Through water washing, physical adsorption, and chemical neutralization, it simultaneously removes acidic and alkaline gases, particulate matter, and some organic pollutants. This significantly improves air quality and helps you meet environmental emission standards.
