Automation & Packaging Equipment for
Fertilizers and Dry Bulk Materials
Fertilizers and Dry Bulk Materials
-

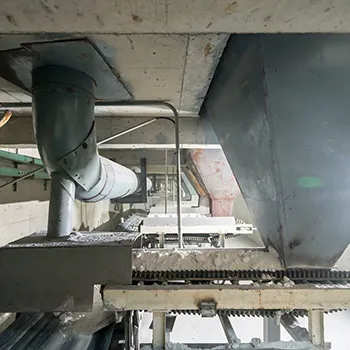

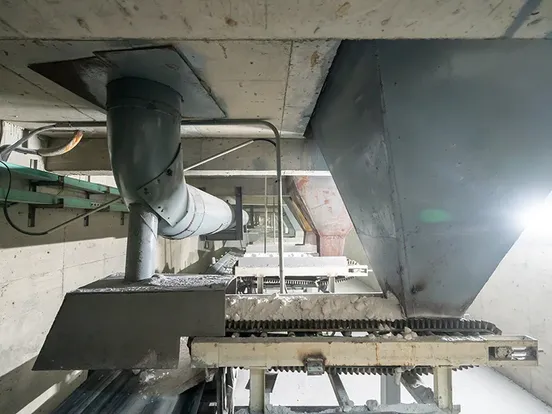

The automatic weighing system is designed for the precise batching and mixing of products like compound, organic, and blended fertilizers. It automates the proportioning of granular or powdered raw materials such as urea, ammonium phosphate, potassium chloride, and superphosphate.
Uses high-precision electronic scales (with an error of ≤0.1%) to monitor the amount of raw materials added in real time, ensuring accurate and controllable proportions of key nutrients like nitrogen, phosphorus, and potassium.
The entire process is unmanned, supporting 24-hour continuous production and shortening single-batching time by over 50%.
The PLC and industrial computer system allow for one-click recipe switching, automatically adjusting parameters like feed speed and mixing time to meet diverse production needs. It also monitors equipment status (e.g., motor load, material level alarms) in real time and automatically shuts down and displays fault points in case of an anomaly, reducing unexpected downtime.
The scale body can be made of steel or 304 stainless steel. The conveyor belt uses wear-resistant and corrosion-resistant rubber.
| Capacity (t/h) | Belt Width (mm) | Max. Linear Speed (m/s) | Sensor Hook (mm) | Rated Load (kg) | Motor Power (kW) | Chain Transmission Ratio |
| 0.25 | 500 | 0.068 | 10 | 8 | 0.75 | 17:61 |
| 0.63 | 500 | 0.0144 | 10 | 8 | 0.75 | 17:29 |
| 1.6 | 500 | 0.03678 | 10 | 8 | 0.75 | 21:37 |
| 6.3 | 500 | 0.065 | 20 | 16 | 0.75 | 21:21 |
| 10 | 650 | 0.12 | 20 | 16 | 1.1 | 17:47 |
| 16 | 650 | 0.204 | 20 | 16 | 1.1 | 17:29 |
| 25 | 650 | 0.208 | 30 | 24 | 1.5 | 21:35 |
| 63 | 650 | 0.516 | 30 | 24 | 1.5 | 21:29 |
| 100 | 800 | 0.577 | 30 | 40 | 1.5 | 17:21 |
Our experts are on hand to help you with any questions you may have about fertilizer equipment.
The various raw materials of fertilizers go through the entire process of feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.
Our automatic weighing system is designed for the precise batching and mixing of compound, organic, and blended fertilizers. It can automatically proportion granular or powdered raw materials like urea, ammonium phosphate, potassium chloride, and superphosphate. The entire process is unmanned and supports 24-hour continuous production, shortening the batching time by over 50%.

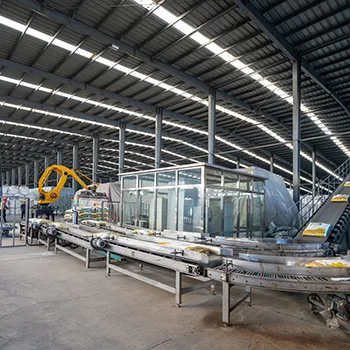

Our automatic bagging machine is primarily used for the automated weighing, bagging, sealing, and conveying of uniformly mixed granular or powdered fertilizers. It can quickly switch between different bag specifications (from 5 kg to 50 kg) to achieve continuous, high-efficiency packaging, completing hundreds to thousands of bags per hour.

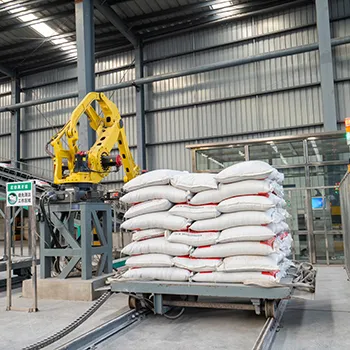

Our automatic palletizer automatically picks up, stacks, and manages pallets of packaged fertilizer bags. Using a robotic arm (Cartesian or articulated) and a conveyor line, it neatly stacks finished bags onto pallets in pre-set layers and arrangements, and automatically replaces empty pallets. This creates an integrated assembly line from packaging to palletizing to warehousing.
