Automation & Packaging Equipment for
Fertilizers and Dry Bulk Materials
Fertilizers and Dry Bulk Materials
-

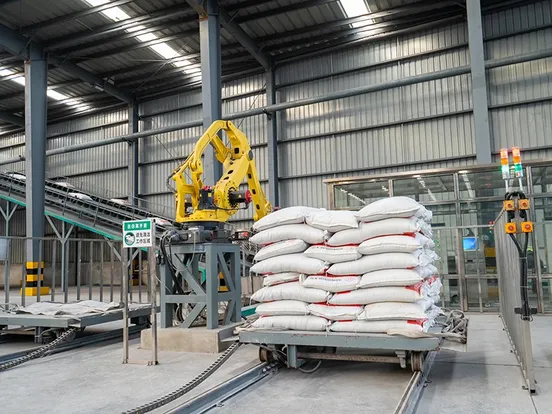

Automatic palletizer is used in fertilizer production to automatically pick up, stack, and manage pallets of packaged fertilizer bags. Using a robotic arm (Cartesian or articulated) and a conveyor line, it neatly stacks finished bags onto pallets in pre-set layers and patterns and automatically replaces empty pallets. This creates a fully integrated assembly line from packaging to palletizing to warehousing.
It can palletize hundreds to over a thousand bags per hour, matching the output of dozens of workers and significantly shortening packaging and warehousing turnover times.
It supports various packaging materials (e.g., woven bags, plastic film) and different bag specifications from 5 kg to 50 kg. The gripper can be flexibly switched (pincer-style or vacuum suction cups).
A PLC/industrial computer tracks the pickup location, stacking sequence, and equipment status in real time. It automatically alarms and shuts down in case of an anomaly, ensuring operational safety. The built-in pallet dispenser can automatically supply and retrieve pallets without manual intervention.
The equipment is equipped with safety features like light curtain sensors and safety fences to prevent personnel from entering dangerous areas, meeting high-standard safety production requirements.
Our experts are on hand to help you with any questions you may have about fertilizer equipment.
The various raw materials of fertilizers go through the entire process of feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.
Our automatic weighing system is designed for the precise batching and mixing of compound, organic, and blended fertilizers. It can automatically proportion granular or powdered raw materials like urea, ammonium phosphate, potassium chloride, and superphosphate. The entire process is unmanned and supports 24-hour continuous production, shortening the batching time by over 50%.
Our automatic bagging machine is primarily used for the automated weighing, bagging, sealing, and conveying of uniformly mixed granular or powdered fertilizers. It can quickly switch between different bag specifications (from 5 kg to 50 kg) to achieve continuous, high-efficiency packaging, completing hundreds to thousands of bags per hour.
Our automatic palletizer automatically picks up, stacks, and manages pallets of packaged fertilizer bags. Using a robotic arm (Cartesian or articulated) and a conveyor line, it neatly stacks finished bags onto pallets in pre-set layers and arrangements, and automatically replaces empty pallets. This creates an integrated assembly line from packaging to palletizing to warehousing.
