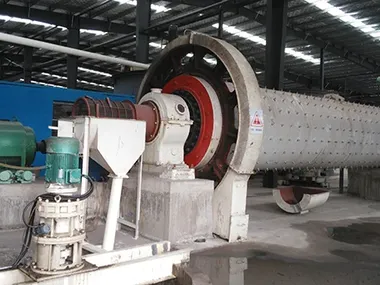

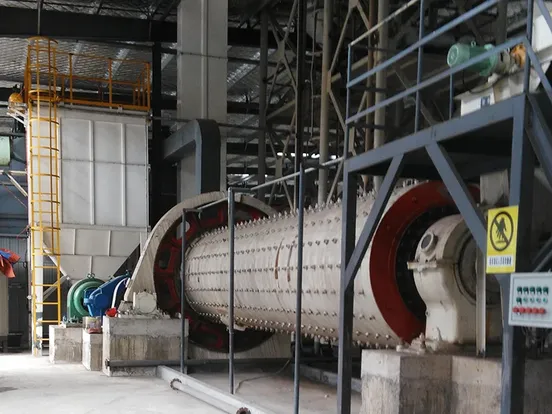

A ball mill uses the rotation of a cylindrical drum filled with grinding media, like steel or ceramic balls, to crush materials into a fine powder through a combination of impact and friction. It can be used for either dry or wet grinding and is capable of processing a wide range of materials, including metal ore, coal, and ceramic raw materials.
Drum Size (m) | Drum Speed (r/min) | Grinding Ball Loading Capacity (t) | Production Capacity (t/h) | Main Motor | Main Reducer | Weight (t) | |
Model | Power (kW) | Model | |||||
Ø2.4×8 | 20.9 | 45 | 21~24 | JRQ1512-8 | 570 | ZD80 | 72 |
Ø3.0×9 | 18.6 | 80 | 26~34 | YR1000-8/1180 | 1000 | MBY800 | 132 |
Ø3.4×9.5 | 16.9 | 75 | 70 | YR1250-8/1430 | 1250 | JDX900 | 168 |
Ø3.8×7.5 | 16.7 | 85 | 85 | YR710-8 | 1400 | MBY800 | 180 |
Ø4.6×9.5+3.5 | 15 | 185 | 180~190 | YRKK900-8 | 3550 | MFY355 | 345 |
The cylindrical shell material is Q235 steel, with internal liners available in either rubber or steel.
Our experts are on hand to help you with any questions you may have about fertilizer equipment.
The various raw materials of fertilizers go through the entire process of feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.
We highly recommend our chain mill crusher. Its chain design provides superior anti-adhesion capabilities for high-moisture materials, preventing clumping and blockages during the crushing process, making it ideal for fertilizers. Its core components are simple – a rotor, chains, and liner plates – with no complex gears or transmission systems, ensuring extremely convenient assembly, disassembly, and daily maintenance, leading to minimal downtime and low operational costs.
The cage mill crusher is an excellent choice for crushing limestone. It features multiple layers of concentrically arranged steel cage bars. Material is repeatedly impacted and crushed through friction as it moves between these high-speed rotating bars. This makes it ideal for medium to low-hardness, brittle materials, producing a uniform particle size with minimal over-grinding.
Our lump breaker is perfectly suited for this. It features high wear-resistant alloy components and a heavy-duty welded frame, paired with hydraulic overload protection for superior impact resistance and anti-deformation. Its vibration-damping design reduces loss from vibration, ensuring stability and long life even in harsh working conditions. This crushing machine is highly tolerant of incoming material, capable of directly handling large blocks of 1-1.5 meters without pre-crushing, meeting the demands of large-scale production.
