Fertilizer Screening Equipment
-

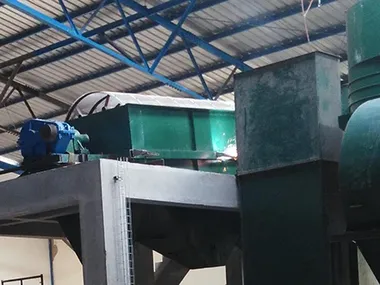

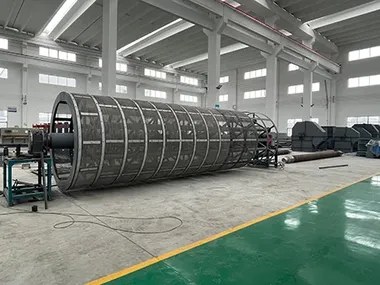

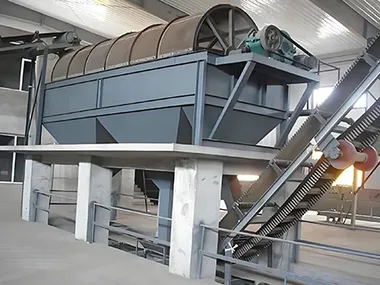

Trommel screen uses a rotating drum and a rolling brush device to create a spiral motion for material, allowing for precise and fine grading. This makes it an ideal solution for the high-volume, high-precision screening of compound fertilizers.
The optimized length-to-diameter ratio and screen mesh aperture of the drum ensure uniform and precise particle grading.
The drum uses an anti-corrosion screen mesh and is equipped with an automatic cleaning device to reduce blockages and vibration.
The screen mesh and beating device are optimized for the specific characteristics of compound fertilizer granules, ensuring easy discharge and quick grading.
| Drum Size (m) | Production Capacity (t/h) | Motor Power (kW) | Rotation Speed (r/min) | Screening Area (m²) |
| Ø1.2×2 | 2-5 | 3 | 20 | 7.536 |
| Ø1.2×3 | 2-5 | 3 | 20 | 11.304 |
| Ø1.2×4 | 2-5 | 3 | 20 | 15.072 |
| Ø1.4×3 | 3-6 | 3 | 18 | 13.188 |
| Ø1.4×4 | 3-8 | 5.5 | 18 | 17.584 |
| Ø1.4×6 | 5-8 | 4 | 18 | 20.096 |
| Ø1.5×3 | 5-8 | 4 | 18 | 14.13 |
| Ø1.5×4 | 6-10 | 5.5 | 18 | 18.84 |
| Ø1.5×5 | 6-10 | 7.5 | 18 | 23.55 |
| Ø1.5×6 | 8-10 | 11 | 18 | 28.26 |
| Ø1.6×4 | 8-12 | 5.5 | 17 | 20.096 |
| Ø1.6×5 | 10-15 | 7.5 | 17 | 25.12 |
| Ø1.6×6 | 10-15 | 11 | 17 | 30.144 |
| Ø1.8×4 | 10-12 | 7.5 | 16 | 22.608 |
| Ø1.8×5 | 12-15 | 11 | 16 | 28.26 |
| Ø1.8×6 | 15-20 | 15 | 16 | 33.912 |
| Ø1.8×7 | 15-20 | 18.5 | 16 | 39.564 |
| Ø2.0×4 | 15-18 | 11 | 16 | 25.12 |
| Ø2.0×5 | 18-20 | 15 | 16 | 31.4 |
| Ø2.0×6 | 20-25 | 18.5 | 16 | 37.68 |
| Ø2.0×7 | 20-25 | 22 | 16 | 43.96 |
| Ø2.0×8 | 25-30 | 22 | 16 | 50.24 |
| Ø2.0×10 | 25-30 | 30 | 16 | 62.8 |
| Ø2.2×5 | 20-25 | 18.5 | 15 | 34.54 |
| Ø2.2×6 | 25-30 | 22 | 15 | 41.448 |
| Ø2.2×7 | 25-30 | 22 | 15 | 48.356 |
| Ø2.2×8 | 30-40 | 30 | 15 | 55.264 |
| Ø2.2×10 | 30-40 | 37 | 15 | 69.08 |
| Ø2.4×5 | 25-30 | 18.5 | 14.5 | 37.68 |
| Ø2.4×6 | 30-40 | 22 | 14.5 | 45.216 |
| Ø2.4×7 | 30-40 | 22 | 14.5 | 52.752 |
| Ø2.4×8 | 40-50 | 30 | 14.5 | 60.288 |
| Ø2.6×6 | 40-50 | 30 | 13 | 48.984 |
| Ø2.6×8 | 50-60 | 37 | 13 | 65.312 |

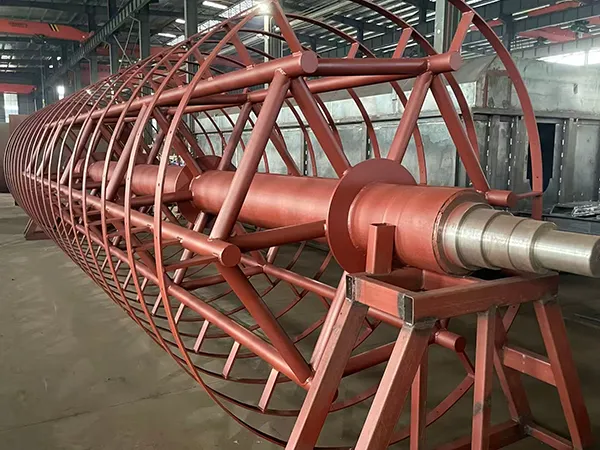

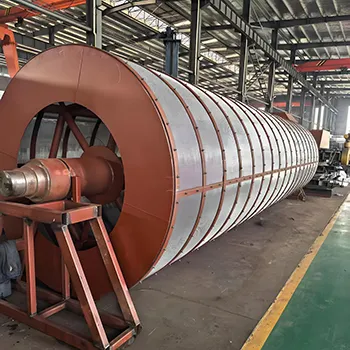

The drum body is made of Q235 steel, with the screen mesh and pressure plate made of stainless steel. The shaft is made of 45# steel.
Our experts are on hand to help you with any questions you may have about fertilizer equipment.

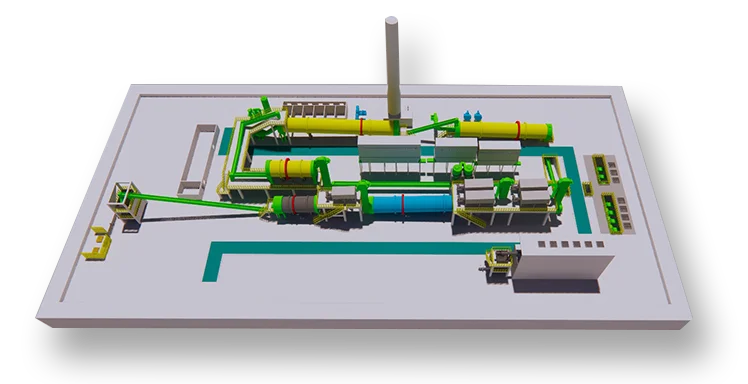

The various raw materials of fertilizers go through the entire process of feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.
Timely cleaning and reducing the moisture content of the material in the upstream process will minimize blockages.
A trommel screen is the best choice when you need to process a large volume of material with many impurities or larger particles.
