Fertilizer Screening Equipment
-

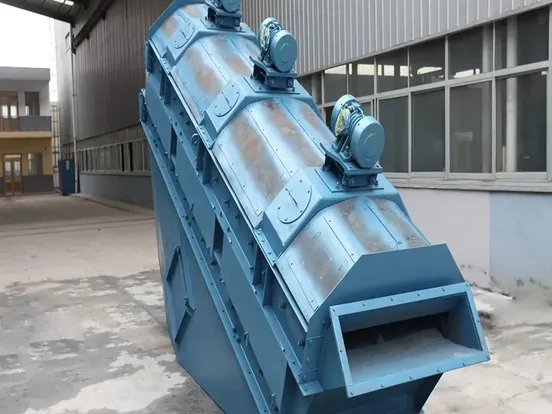

Vibrating sieve is widely used in the fertilizer industry to screen and grade granular fertilizers, ensuring uniform particle size and consistent product quality.
By adjusting vibration parameters like amplitude and frequency and selecting the appropriate screen mesh, the vibrating sieve can precisely separate materials by different particle sizes. This meets the strict size requirements of various production processes.
The equipment has a small footprint, is easy to operate and maintain, and has high operational stability. Its key components are made from wear- and corrosion-resistant materials, extending the service life and reducing operational costs.
High-frequency vibration effectively prevents material from clogging the screen, which boosts screening efficiency and precision.
| Model | Screen Surface | Input Particle Size (mm) | Production Capacity (t/h) | Vibration Frequency (beats per minute) | Dual Amplitude (mm) | Power (kW) | Dimensions (L×W×H) (mm) | Weight (kg) | ||||
| Number of Deck | Area (m²) | Inclination (°) | Mesh Size (mm) | Structure | ||||||||
| | 1 | 3.6 | 37 | 10×40 | Woven wire mesh | ≤60 | 30-35 | 1450 | 3-5 | 0.85×2 | 3090×1700×3169 | 1623 |
| | 2 | 3.6 | 33 | Upper 4×50 Lower 1.4×50 | Woven wire mesh | ≤60 | 30-35 | 1450 | 3-5 | 0.85×2 | 3301×1680×3300 | 2300 |
| | 1 | 5.4 | 37 | Upper 4×50 Lower 1.4×50 | Woven wire mesh | ≤60 | 45-60 | 1450 | 3-5 | 0.85×3 | 4350×1660×5066 | 2631 |
| | 2 | 5.4 | 37 | Upper 4×50 Lower 1.4×50 | Woven wire mesh | ≤60 | 45-60 | 1450 | 3-5 | 0.85×3 | 4496×1660×5648 | 3612 |
| | 1 | 7.2 | 20 | 4×25 | Woven wire mesh | ≤60 | 60-90 | 1450 | 3-5 | 0.85×4 | 6576×1660×4240 | 3290 |
| | 2 | 7.2 | 37 | Upper 4×50 Lower 1.4×50 | Woven wire mesh | ≤60 | 60-90 | 1450 | 3-5 | 0.85×4 | 5678×1660×6156 | 4532 |
The body's shell is made of Q235 steel, the screen mesh is made of stainless steel, and the connections are sealed with rubber.
Our experts are on hand to help you with any questions you may have about fertilizer equipment.
The various raw materials of fertilizers go through the entire process of feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.
The vibrating sieve is ideal for high-precision screening of fine-particle materials. Because it directly vibrates the screen surface, it is less prone to clogging than a trommel screen. It can achieve screening precision of 0.02-1mm.
The vibrating sieve is perfect for this. By adjusting the vibration parameters (amplitude, frequency) and selecting the right screen mesh, it can accurately separate materials by particle size. Its high-frequency vibration effectively prevents blockages and enhances both screening efficiency and precision.
The vibrating flip-flow screen is a great fit. Its continuous, rapid vibration spreads the material evenly across the screen, preventing clumping and blockages to ensure smooth, high-capacity screening. It's primarily used for the precise screening and grading of various granular and powdered materials. In the fertilizer industry, it's essential for sorting materials to maintain product quality and a smooth production process.
