Conveying Equipment for
Fertilizers and Dry Bulk Materials
Fertilizers and Dry Bulk Materials
-

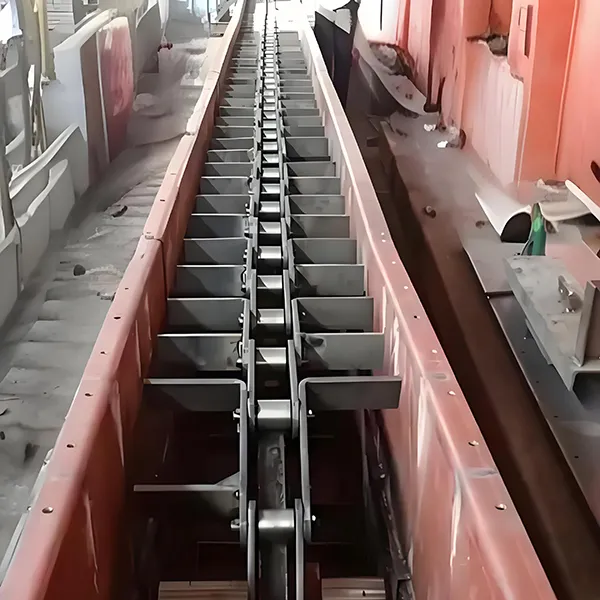

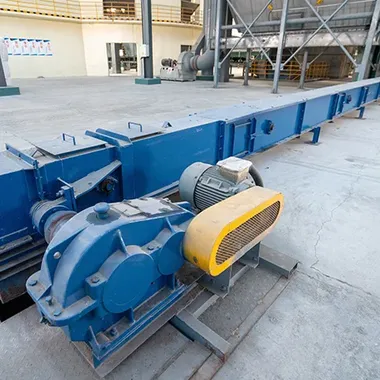

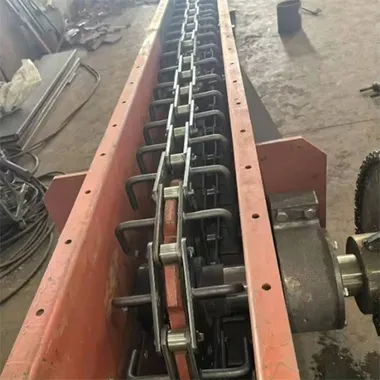

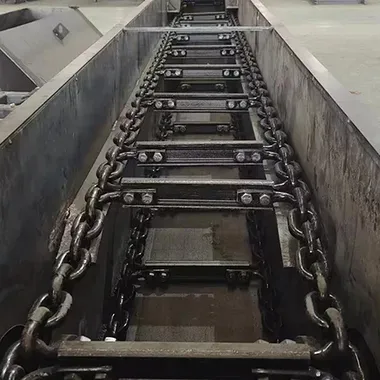

Scraper conveyor is an industrial device specifically designed for the continuous and enclosed transport of bulk materials. Widely used in industries such as coal, mining, cement, grain processing, and chemicals, it's suitable for moving lumpy, granular, and powdered materials (like coal, ore, cement clinker, grain, and fertilizer) horizontally or on an incline. It is especially effective in harsh conditions with high temperatures, moisture, and dust, making it ideal for underground mining, production line transfers, and warehouse loading/unloading.
The large-capacity trough design allows you to adjust the conveying capacity based on production needs, enabling efficient, large-scale material transfer.
The trough and scrapers are made from high-wear, corrosion-resistant materials to extend the equipment's service life.
A fully enclosed structure effectively prevents dust leakage, meeting all environmental protection requirements.
| Model | Conveying Capacity (t/h) | Conveying Distance (m) | Motor Power (kW) | Allowable Material Particle Size (mm) | Allowable Material Temperature (℃) | Allowable Material Hardness | Dust Concentration in Air (mg/ m³) | Conveying Speed (m/s) | Weight (kg) | ||
| Front part | Middle trough | Tail part | |||||||||
| | 15-20 | 5-20 (including 20) | 5.5 | 5-40 | ≤300 | ≤8 Mohs Hardness | ≤6 | 0.29-0.5 | 425 | 213 | 410 |
| 20-30 | 7.5 | ||||||||||
| | 20-45 | 5-20 (including 20) | 7.5 | 5-40 | 653 | 262 | 430 | ||||
| 20-30 | 11 | ||||||||||
| | 25-50 | 5-20 (including 20) | 7.5 | 5-40 | 677 | 323 | 544 | ||||
| 20-30 | 11 | ||||||||||
| | 30-70 | 5-20 (including 20) | 11 | 5-45 | 730 | 420 | 598 | ||||
| 20-30 | 15 | ||||||||||
| | 40-80 | 5-20 (including 20) | 18.5 | 5-65 | 900 | 500 | 700 | ||||
| 20-30 | 22 | ||||||||||
| | 60-120 | 5-20 (including 20) | 18.5 | 5-65 | 1100 | 550 | 1000 | ||||
| 20-30 | 22 | ||||||||||
The standard shell material is Q235 steel, with steel chains. It can also be custom-made entirely from stainless steel.
Our experts are on hand to help you with any questions you may have about fertilizer equipment.
The various raw materials of fertilizers go through the entire process of feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.
We recommend our scraper conveyor. It's an industrial device designed for continuous and enclosed transport of bulk materials. Ideal for horizontal or inclined conveyance of lumpy, granular, and powdered materials, it excels in harsh conditions with high temperatures, moisture, and dust. Its fully enclosed structure effectively prevents dust leakage, meeting all environmental regulations.
Our belt conveyor is perfect for continuous, non-stop operation. Its capacity can be precisely matched to your material's characteristics and production needs by adjusting the belt speed and width. We offer a variety of belt materials, including rubber, PVC, and nylon, to handle high-temperature, humid, and corrosive environments.
Our screw conveyor is specifically designed for the enclosed transport of powdered, granular, and small lumpy materials. Suitable for horizontal, inclined, or vertical conveyance, it's ideal for materials that are prone to dust, are toxic, flammable, or require mixing. By adjusting the rotation speed, you can precisely control the conveying volume, adapting to different production rhythms for fine-tuned material feeding.
