Conveying Equipment for
Fertilizers and Dry Bulk Materials
Fertilizers and Dry Bulk Materials
-

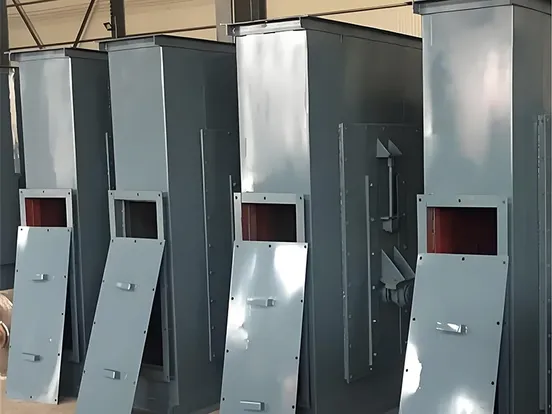

Bucket elevator is a piece of equipment specifically designed for the vertical conveyance of powdered, granular, and small lumpy materials. Widely used in grain storage, mining, construction, and chemical industries, it can continuously lift materials (such as grain, ore, cement, and fertilizer) from a low point to a high point, such as from the ground to a silo or from an underground mine to the surface. Its enclosed structure effectively prevents dust dispersion, making it ideal for spaces with limited room that require efficient vertical transfer.
The vertical conveying design has a small footprint, allowing it to navigate multi-story plants or complex layouts to maximize space utilization. We offer customizable lifting heights (from a few meters to over a hundred meters) to meet various production needs.
We offer a range of bucket types (shallow, deep, and staggered) to transport different materials, including wet, dry, sticky, and fragile ones. Flexible traction parts (chains or belts) ensure stable transport of both heavy-duty materials (like ore) and lighter materials (like grain).
The drive system and tensioning device work together to ensure smooth operation and prevent slippage or deviation. Key components are made from wear- and corrosion-resistant materials (e.g., alloy chains, high-strength steel buckets) for a long service life and low overall cost.
| Elevator Model | TH160 | TH250 | TH315 | TH400 | TH500 | TH630 | TH800 | TH1000 | TH1250 | ||||||||||
| Bucket Model | Zh | Sh | Zh | Sh | Zh | Sh | Zh | Sh | Zh | Sh | Zh | Sh | Zh | Sh | Zh | sh | Zh | Sh | |
| Capacity (m³/h) | 19 | 30 | 30 | 48 | 35 | 59 | 58 | 94 | 75 | 118 | 114 | 185 | 150 | 240 | 240 | 360 | 360 | 540 | |
| Bucket | Bucket Capacity (L) | 1.2 | 1.9 | 3 | 4.8 | 3.75 | 6 | 5.9 | 9.5 | 9.3 | 15 | 14.6 | 23.6 | 24 | 38 | 38 | 60 | 60 | 95 |
| Bucket Spacing (mm) | 360 | 450 | 512 | 688 | 920 | 920 | 1001 | ||||||||||||
| Chain | Diameter×Pitch (mm) | Ø12×45 | Ø18×64 | Ø22×86 | Ø26×92 | Ø28×92 | |||||||||||||
| Chain Breaking Force (kN) | ≥170 | ≥320 | ≥480 | ≥570 | ≥660 | ||||||||||||||
| Bucket Speed (m/s) | 1.2 | 1.2 | 1.4 | 1.5 | 1.6 | ||||||||||||||
| Sprocket Rotation Speed (r/min) | 62.5 | 46.8 | 42.5 | 37.6 | 35.8 | 31.8 | 30.5 | 24.4 | 28 | ||||||||||
| Max. Material Size (mm) | 20 | 25 | 35 | 40 | 50 | 60 | 75 | 85 | 100 | ||||||||||
The standard material is Q235 steel, with the middle baffle being wear-resistant, corrosion-resistant rubber. The shell can also be customized to stainless steel.
Zh is for medium-deep buckets, and Sh is for deep buckets.
Our experts are on hand to help you with any questions you may have about fertilizer equipment.
The various raw materials of fertilizers go through the entire process of feeding, crushing, mixing, conveying, granulation, drying, cooling, screening, coating, and packaging.
Choose a screw conveyor when high-precision measurement and control of the conveyed volume is needed, but the overall throughput isn't as high as what a belt conveyor provides.
Our belt conveyor is perfect for continuous, non-stop operation. Its capacity can be precisely matched to your material's characteristics and production needs by adjusting the belt speed and width. We offer a variety of belt materials, including rubber, PVC, and nylon, to handle high-temperature, humid, and corrosive environments.

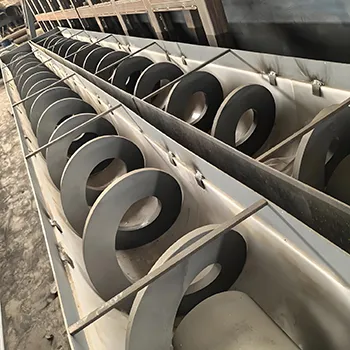

Our screw conveyor is specifically designed for the enclosed transport of powdered, granular, and small lumpy materials. Suitable for horizontal, inclined, or vertical conveyance, it's ideal for materials that are prone to dust, are toxic, flammable, or require mixing. By adjusting the rotation speed, you can precisely control the conveying volume, adapting to different production rhythms for fine-tuned material feeding.
